Sunday, November 3, 2019

Steam load consumption & necessary Boiler capacity calculation of a garment washing factory!


The estimated steam load consumption & Necessary Boiler Capacity calculation for a Garment Washing Factory is given below.

Basically, the load steam will be consume by Washers, Dryers & Steam Irons.

Steam Consumption of XYZ Washing & Dyeing Ltd.

Sl. No
Steam Used equipment
Consumption per Hour
Number of Machines
Total Consumption per Hour
with 25% Extra efficiency
Boiler required for this plant
Remarks
1
Dryer – Danish
400 kgs
03 pcs
1200 kg





13800 kgs

which is 14 Ton approximately





14 Ton





Machine consumption calculated without idle time.
2
Dryer – China
180 kgs
13 pcs
2340 kg
3
Wash Danish/Tolon
150 kgs
21 pcs
3150 kg
4
Wash- Baily
120 kgs
26 pcs
3120 kg
5
Sample washer
35 kgs
20 pcs
700 kg
6
Sample dryer
70 Kgs
4 pcs
280 kg
7
Iron/ steam purpose
25 kgs
10
250
Grand total-
11,040 kgs /Hour

Please note that, the above Machine Numbers are just for an example.

The estimated necessary boiler capacity is = 14 TON

Thank you!
K M Zahidur Rahman


N.B- Take help from my blog but do not copy any of the content without my permission !

Monday, September 23, 2019

Denim Shirt Washing formula!

Buyer : - Garment descriptions : Denim Shirt Factory: X Group Brand: YZ
Wash instructions : 90 Pcs - 58 kg Style : 1234 P.O : 5678
Wash steps : Enzyme , Bleach, Neutral wash with Tint Wash
Machine RPM : 30 Machine Type: Top Loading
Date: 07.09.2019
Sl. Steps Water Level (Liters) Chemical Name Weight (grams) PH Level Temperature Run Time ' Remarks
      ºC MIN
Drain Rinse
1     Desize with the sleeves upside down (inner) & again, put the upper side on the outside and after then rest of the washing process has to be complete.











* Desize 500       Soda Ash 700 gm
40-45`c 5 min yes 1



A.NTM 500 gm







Softner 200 gm







Silicon Oil 500 gm







R. HTC 300 gm














2     Enzyme 300      Valumax enzyme 900 gm
R.T 35-40 Min yes 1



Anti back staining agent 1100 gm
check











3     Bleach 400      Bleach KCI 2000 gm 50`c 03-10 min yes 1







check

4     Neutral 300      Hypo 1000 gm 40`c 08 min yes 1







5     Cleaning 400      Soda Ash 500 gm
50`c 05-10 min yes 1



Hydrogen Peroxide 500 gm

check




Biode 100 gm














6     Dyeing 300       Brown GTL 5 gm
50`c 5-10 min yes 1



Red BWS 1.2 gm

check




Glover Salt 500 gm














     7       Softener 250       Sotener  200 gm 5 R.T 5 min yes 1



Silicon oil 300 gm







Citric Acid 150 gm













































HYDRO- GAS DRYER 55-60`c @ 50- 60 Min- QC Check










Notes : Enzyme Wash estimated time : (Min) : 180






















Wash Formula Written BY, K M Zahidur Rahman














Laser maching printing / burning time study


Thursday, March 14, 2019

Thursday, February 28, 2019

What is the average process weight loss for denim wash garments?

The denim garments are washed after sewing complete, but do we know the process loss that happens in the denim washed garments that may have an effect on tearing strength?

Okay here I am sharing the percent loss of weight for different denim wash:-
In the left chart I have shown the process wise average weight loss that happens in denim wash and also over dyeing. So, be careful when you are washing the garments, because if you take low GSM fabric and apply a light wash on the garments then the tearing strength will be crossed the tolerable base line which will not be acceptable by anyone.

Please note - In the chart "Over Dyeing" process wise weight loss is mentioned only for Gray Fabric (PFD), The situation is dependable on very circumstances, like-

1) For Reactive dyeing- The Weight loss will be very minimum for RFD fabric,
2) For Pigment/Direct dyeing- The wright will be increased due to dye absorption to the RFD fabric,
3) For Enzyme wash- the average weight of the garment will be loosen but the total GSM will be increased due to shrinkage of the fabric.

Thanks for reading, & if you have any question please put it in the comment box.

Regards,
K M Zahidur Rahman
Garments Wash Tech,
Ha-Meem Group

Monday, October 22, 2018

Camo design on ladies Denim long pant using laser and denim wash

Camo design on ladies Denim long pant using laser and denim wash

Today I am going to share my recent development of Camo style on denim long pant with wash formula & the laser Art Work.

This is all over print Camo style applied on denim long pant and washed the garments again using conventional method.

< In the left image - you can see the art work given.

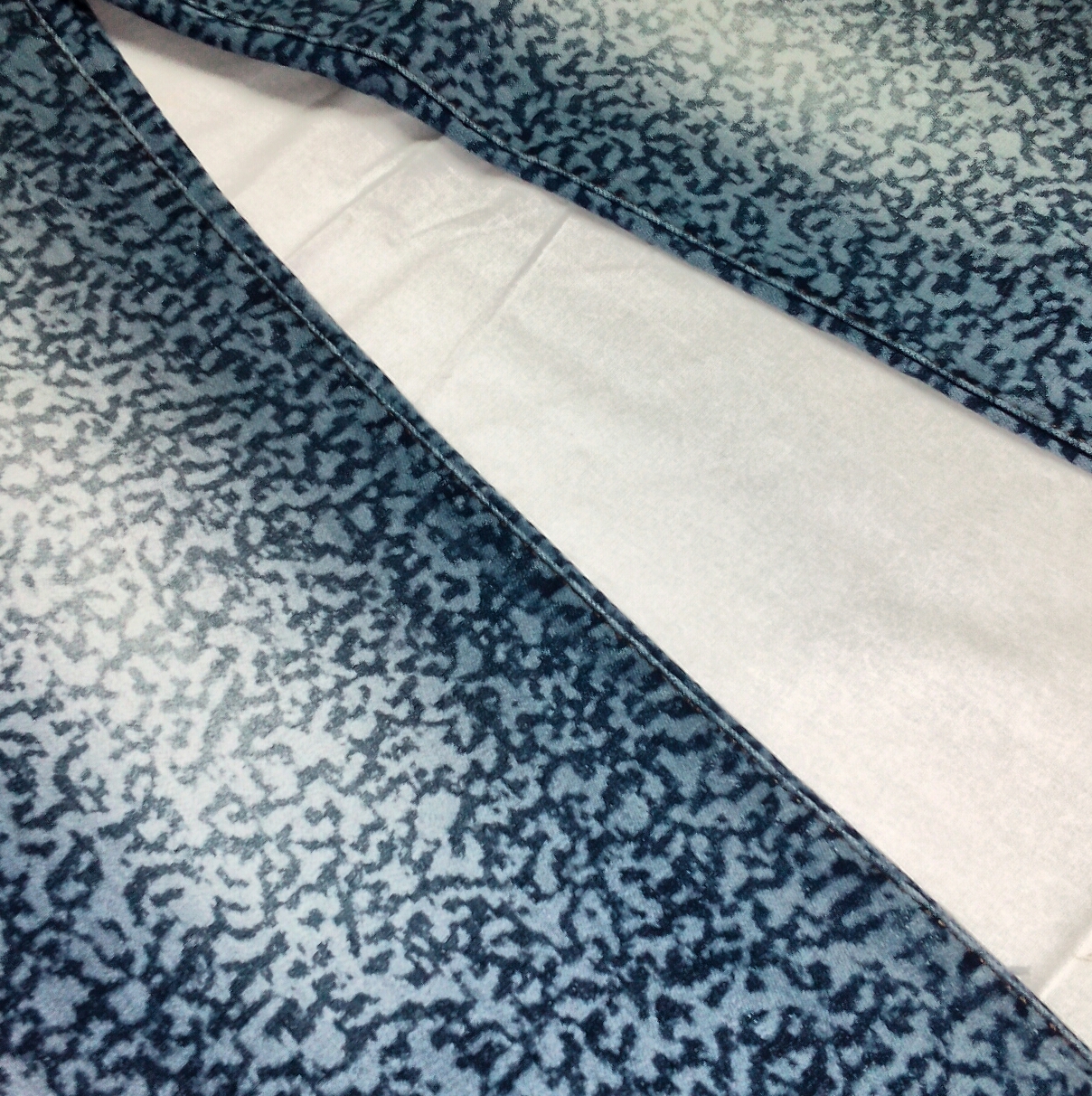

^ And In the Top image  you can see the final design on denim pant and how nice it looks.

In the recent trends the fashions are being changed day by day and thus new design and wash is being arisen. Camo design on denim is one of them.

------------------------------------------------------------------------------
 I have done the laser design using the right image shown laser machine which is conver belt system.












LASER PRINT WASH FORMULA :-

Sl.
No
Steps
Water Level
LTR
Chemical Name
Weight (grams)
PH Level
Temperature
-       ºC
Run Time '
Remarks
Drain
Rinse
1
Enzyme
100
Stone Free Neutral Enzyme
200 g
6.5
45
20 min
Drain
1

Liquid Anti Back staining
100 g

2
Bleach
100
Diluted KCI bleach
100 g

R/T
10 min
Drain
1
3
Neutral
100
Sodium Meta
300 g

R/T
08 min
Drain
1
4
(a)   Hydro
(b)   Dryer
(c)   PP SPRAY (PP – 15gm + Phosphoric Acid- 3 gram : Application)
(d)   CURING
(e)   SECOND WASH
5
Neutral
100
Sodium Meta
300 g

45
10 Min
Drain
1
6
Clenaing
100
Hydrogen Peroxide
400 g

R/T
05 Min
Drain
1
7
Tinting
100
Dk Blue glp
100 mg

R/T
05 Min
Drain
1



Yellow PG
50 mg







White Brightner
10 gm




8
Softening
100
Cationinc Softener
200 gm

R/T
05 min
Drain
-
9
(a)   Hydro
(b)   Dryer
(c)   Curing/ Handfeeling
(d)   QC
(e)   Ironing/ Finishing





Wash Formulated by, K M Zahidur Rahman


You can watch the above video to see how I designed the print on laser.


[ The Laser design artwork can be copied but the blog content should not be copied! -
  All rights reserved to - K. M. Zahidur Rahman ]

- Blog written by,
K M Zahidur Rahman\
